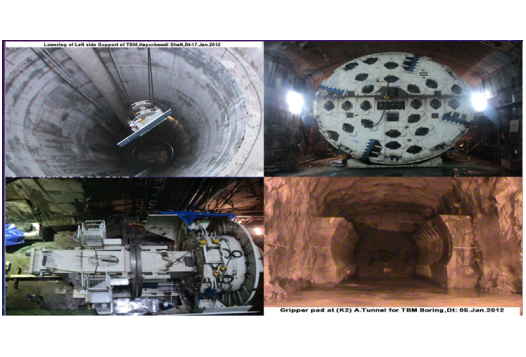

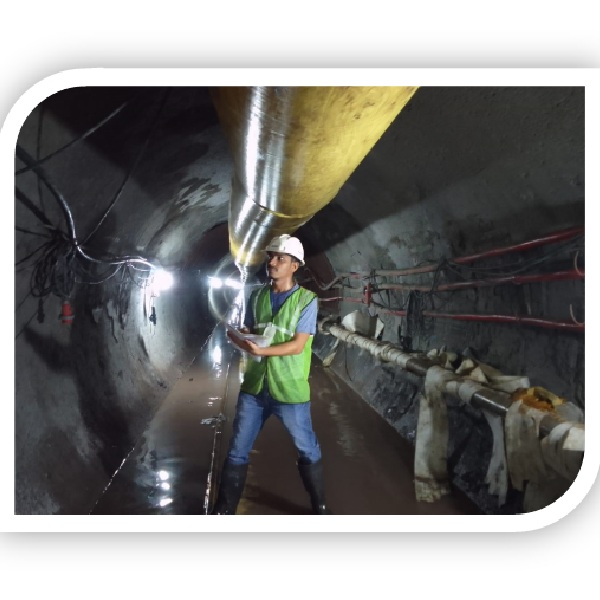

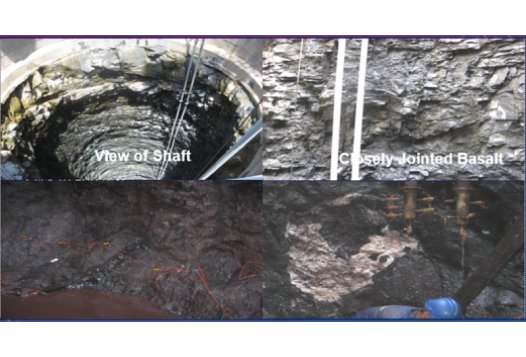

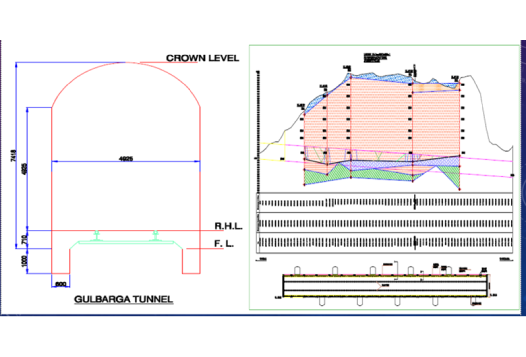

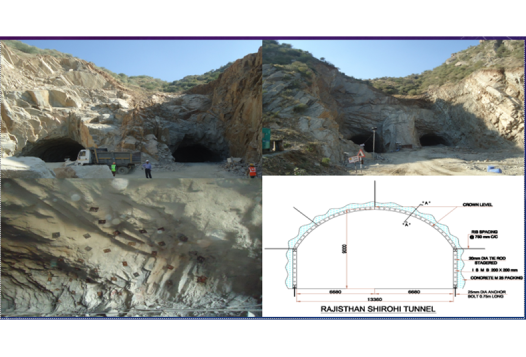

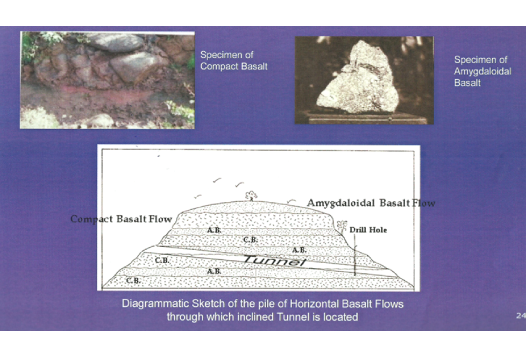

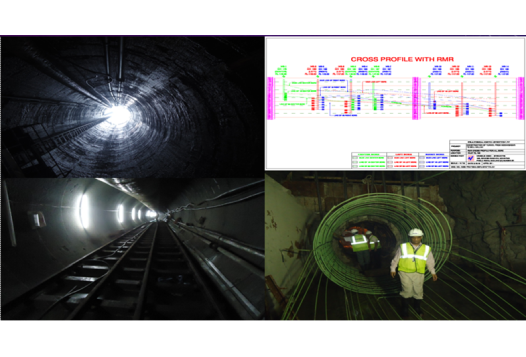

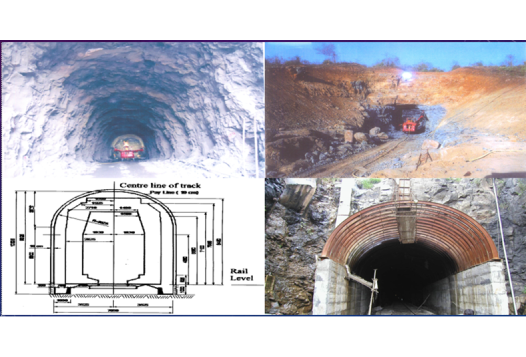

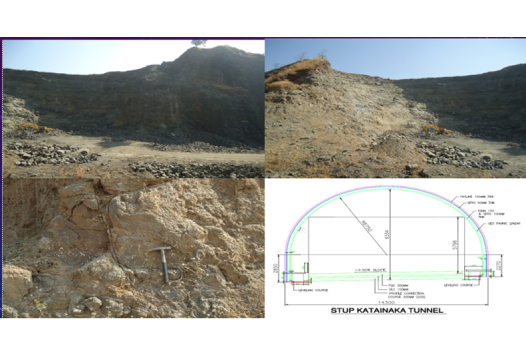

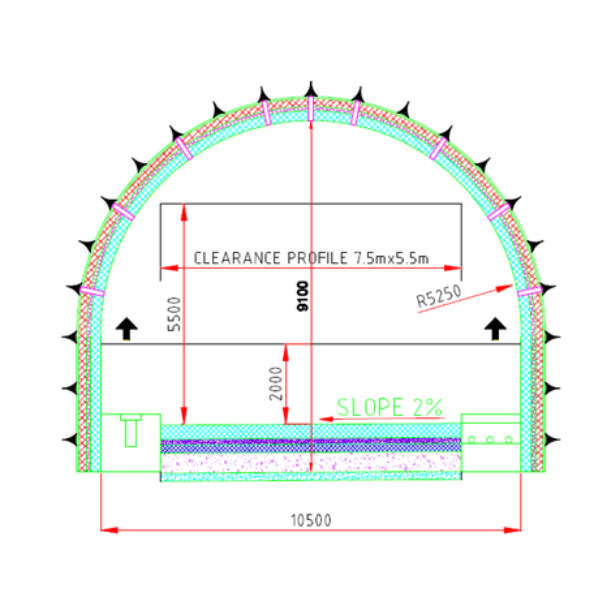

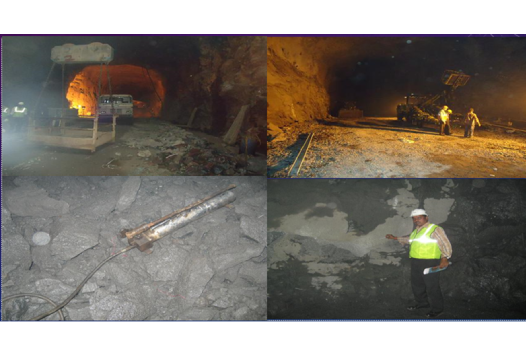

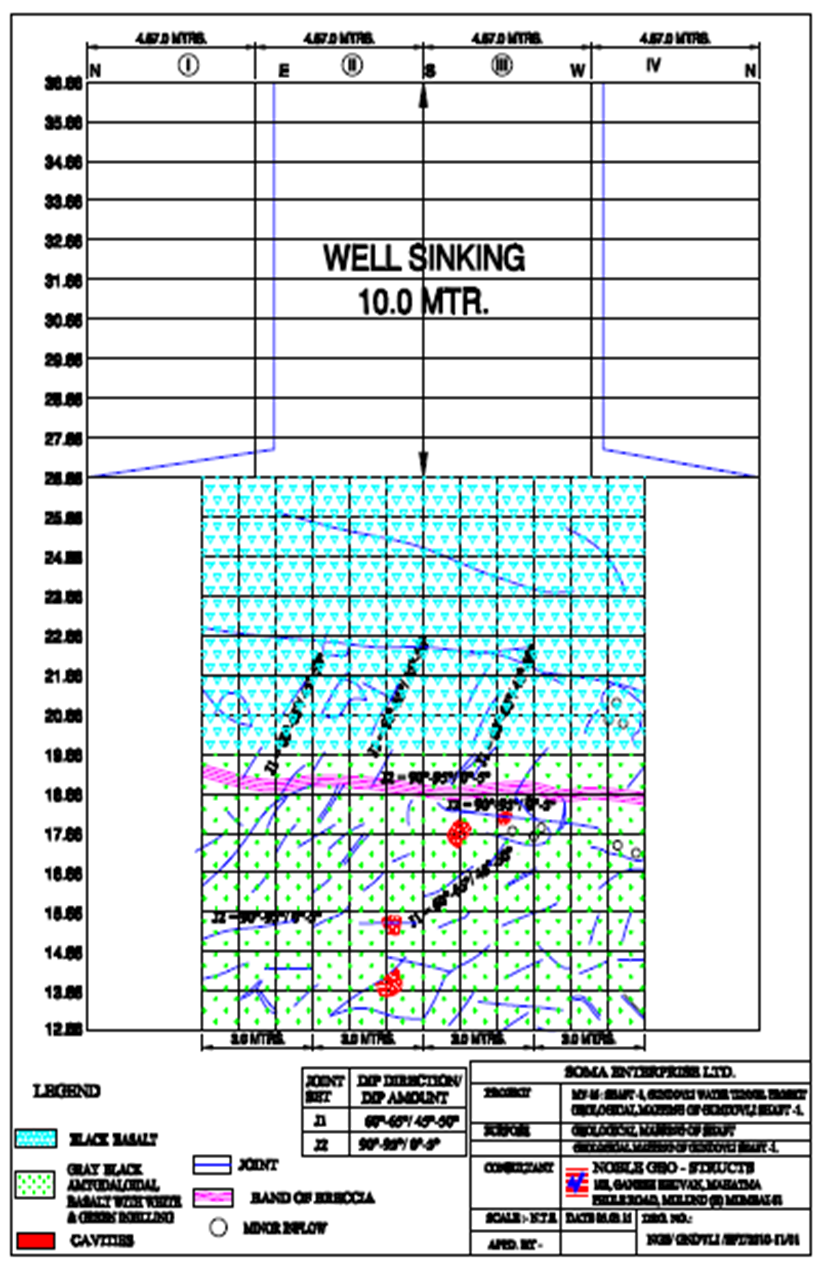

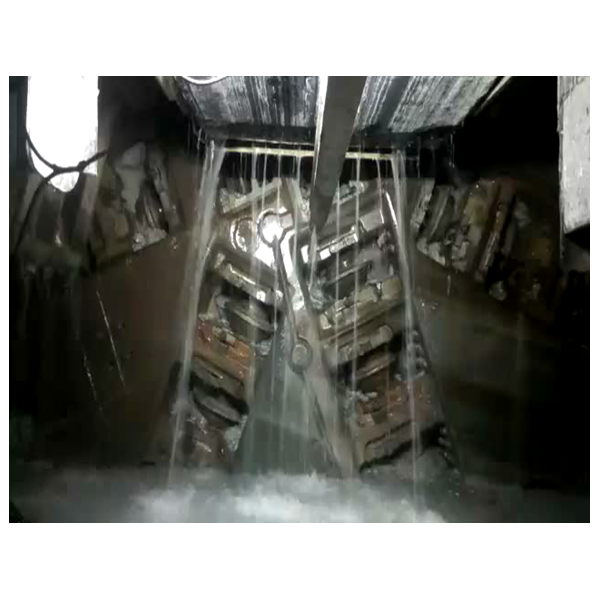

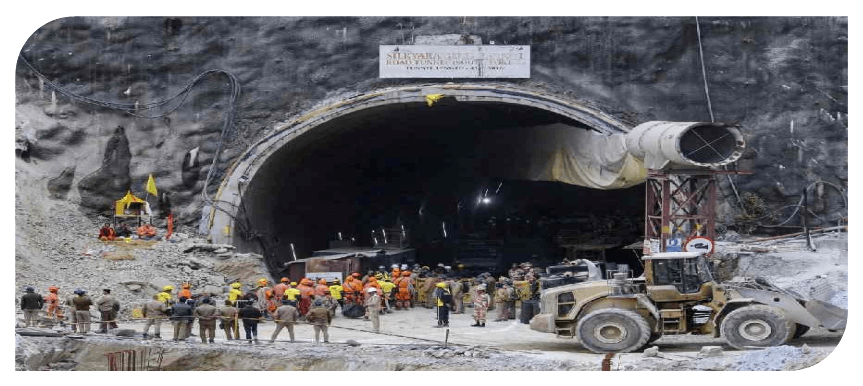

Tunnel engineering poses many challenges with respect to the design of tunnel support system. Many factors govern the safety of a tunnel. Also stringent analyses is necessary for analyzing the safe excavation procedures. Noble Geo-Structs Pvt Ltd provides services to meet these challenges. One of the challenging projects included tunneling below Arabian sea. Construction of shafts has also been a major part of the tunneling projects. Dr. Kulkarni has been providing recommendation since 30 years and more.

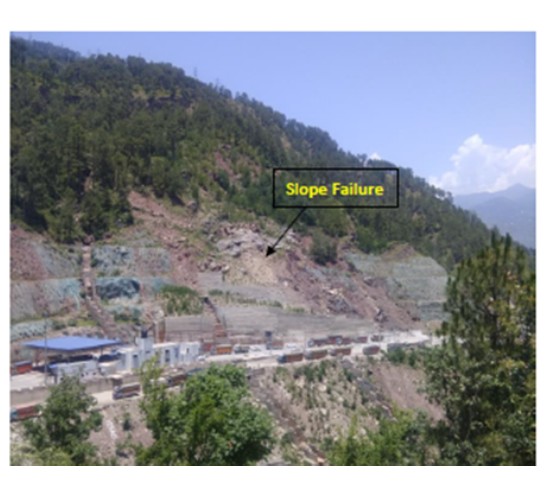

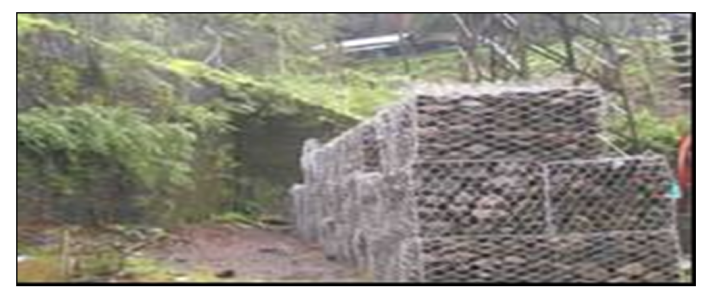

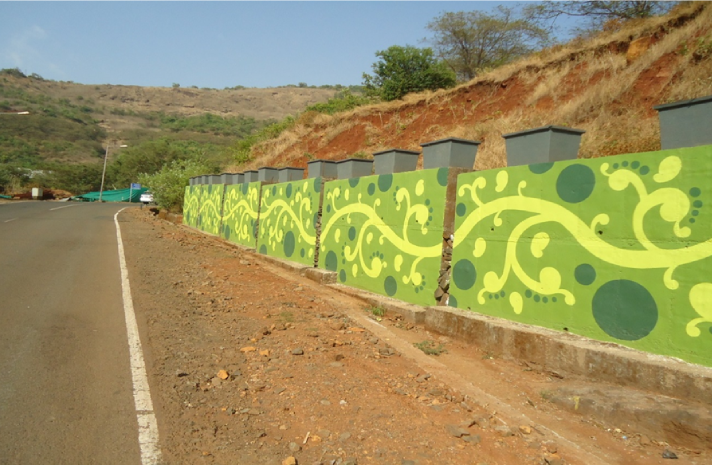

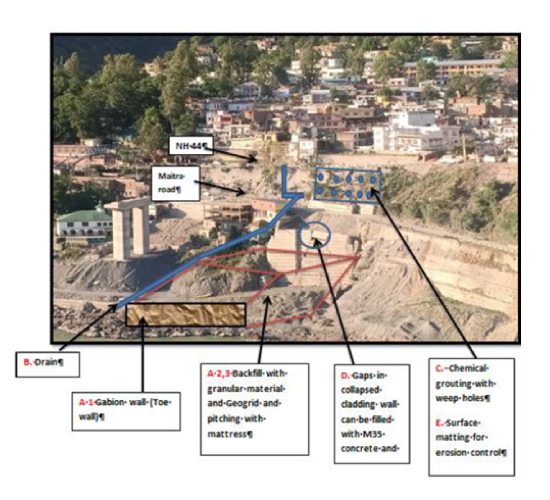

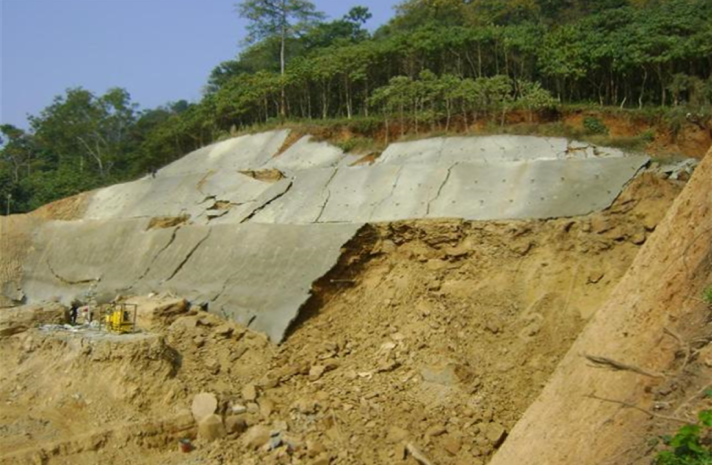

Landslides have proven to be hazardous resulting in to severe damage to industries, infrastructure and life; costing many millions!!! Hence landslide mitigation measures form a very crucial part. Noble Geo-Structs Pvt Ltd specializes by providing expert, innovative and cost-effective solutions to mitigate landslides. Protection measures for both natural and man-made slopes are recommended by NGS Pvt Ltd.
Project : Water supply tunnel
Location : Wadala
Problem : Alignment control in soft soil for water supply tunnel.
Scheme : Chemical Stabilization of soft ground for the influence zone only.
Effect : Successful
Project : Chemical factory
Location : Bhuj
Problem : Liquefaction after Bhuj earthquake
Scheme : Analysis of root cause and stabilization using densification.
Effect : Ok
Project : Lime Kilns
Location : Dwarka
Problem : Rise of lime kilns under thermal gradients involving high temperature 110⁰C
Scheme : Providing interface of Bentonite, bricks proved useful
Effect : Ok
Project : Housing
Location : Noida Delhi
Problem : Soft Yamuna silt earthquake liquefaction
Scheme : Stabilization of soil in influence zone by vibro compaction
Effect : Successful 10 years back
Project : Four stored RCC structure
Location : Vijaywada
Problem : BC soft soil, low SBC high swelling
Scheme : Chemical Stabilization with load distribution scheme using geo system
Effect : Successful last years
Project : Large reservoir of 100m x 100m
Location : Dahej
Problem : Constructed using local BC soil (Slope failure).
Scheme : Used geo synthetic and impervious liner for water tank construction
Effect : Successful, In use since 10 years

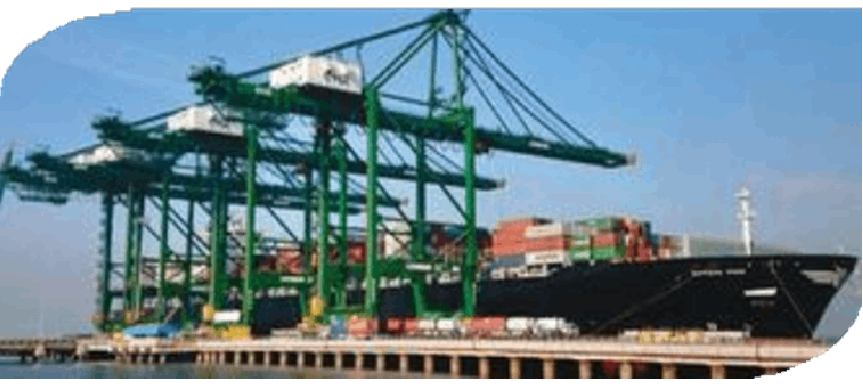

Project : Development of yard for container staking
Location : Calcutta
Problem : Soft marine clay needed stone column for SBC
Scheme : Stabilization using geo synthetic system (alternative band drain)
Effect : Time cut short successfully, economical (5 year old)
Project : Digester foundation
Location : Belgaum
Problem : Due to unstable ground after chemical reaction Digester building moved up by 0.6m
Scheme : Arrested rising tendency, stabilized by chemical method
Effect : Successful (20 years ago)
Project : Flyover
Location : Goa
Problem : Beach sand needed piles to be deep for load carrying capacity
Scheme : Converted pile foundation to spread foundation
Effect : More than 50% foundation attended (7 year old)
Project : Navi Mumbai Airport
Location : Ulve creek
Problem : Soft soil slush be made useful for Runway loading
Scheme : Stone column confining wall was suggested
Effect : Under construction
Project : Water supply tunnel
Location : Bhakti park
Problem : Alignment control in soft soil for water supply tunnel.
Scheme : Chemical Stabilization of soft ground for the influence zone only.
Effect : Successful
Project : Water supply tunnel
Location : Mulund
Problem : Alignment control in soft soil for water supply tunnel.
Scheme : Chemical Stabilization of soft ground for the influence zone only.
Effect : Successful
Client : Gammon Transrail
Project : Bridge on Koshi
Location : Koshi river
Problem : High appraoch embankment needed large SBC with piling, stone column, etc.
Scheme : Stabilization using geo synthetic system
Effect : Successful (2 years ago)
Project : Water supply tunnel
Location : Mankhurd
Problem : Alignment control in soft soil for water supply tunnel.
Scheme : Chemical Stabilization of soft ground for the influence zone only.
Effect : Successful
Project : Housing
Location : Pune
Problem : Turret slope failure
Scheme : Stabilized the turret slope by lime column
Effect : Successful more than 10 years back
PUBLISHED IN ASCE
Project : Eastern free way
Location : Wadala
Problem : Slope failure in soft marine clay
Scheme : Stone column, densification of deep marine clay
Effect : Useful, now functioning
Project : Renuka mata approach on hill
Location : Nanded
Problem : Devising foundation system on hill slope
Scheme : Load distribution system, continuous footing with confining pardi, anchors was designed
Effect : In progress
Client : Konkan Railway
Project : Veer station approach
Location : Veer near Mahad
Problem : Soft soil (lotus pond) needed strengthening for railway loading
Scheme : Sand drain and preloading was constructed/ designed
Effect : Now in use
Client : Structcon
Project : Glass bridge
Location : Malshej Ghat
Problem : Pylon needed to be firmly seated on fractured rock
Scheme : Rock anchors for tension capacity enhancement
Effect : DPR stage
Project : Funiculars bridge
Location : Vani
Problem : Needed stabilization of 100m tall slope adjacent to alignment of bridge

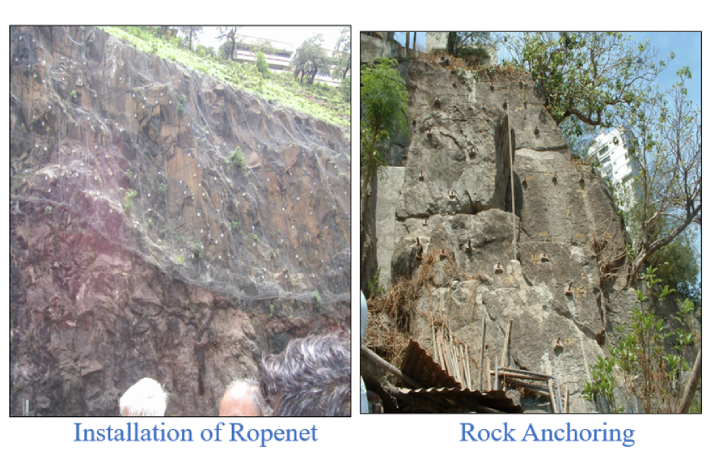

Scheme : Slope stabilized using rock bolts and steel wire mesh
Effect : Successful
Project : Power plant project
Location : Butibori (Nagpur)
Problem : Site specific foundation system, seismic, ERT studies
Scheme : Deep excavations
Effect : Successful
